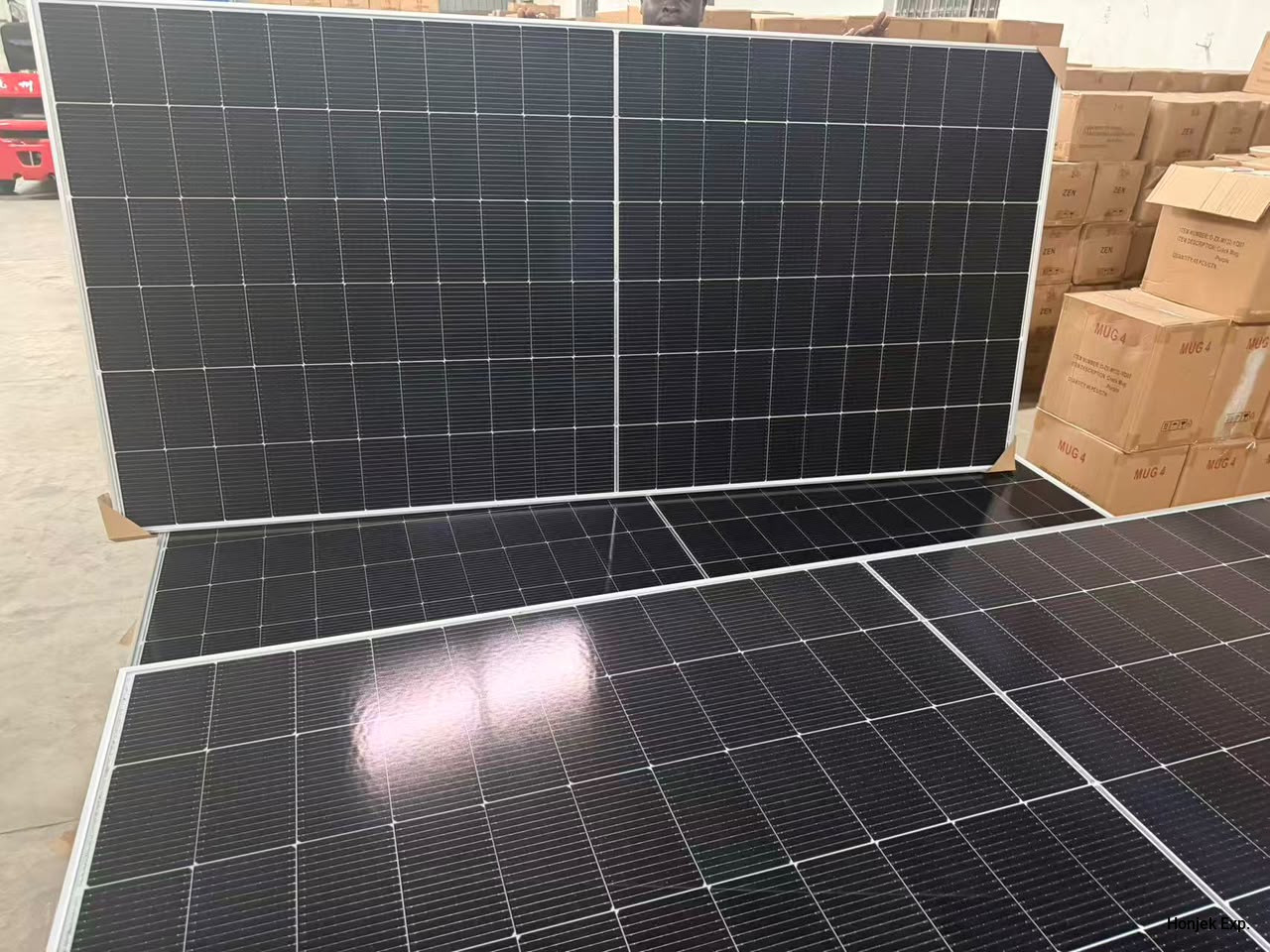

Seraphim 590W Monocrystalline Solar Panel

Solar & Renewable Energy

Solar Panels

Monocrystalline Solar Panels

Brand

Seraphim

Short Description

Generate more clean energy with the Seraphim 590W Monocrystalline Solar Panel. Engineered with high-efficiency PERC monocrystalline cells, this solar module delivers outstanding performance for residential, commercial, agricultural, and industrial solar installations. Featuring a robust anodized aluminium frame, tempered glass, IP68-rated junction box, and a maximum system voltage of 1500V DC, it is built for long-term reliability in harsh outdoor environments.

Product Description

The Seraphim 590W Solar Panel is a premium high-output photovoltaic module designed to maximize energy production while reducing installation costs. With its 590W rated output, it is ideal for grid-tied, hybrid, and off-grid solar power systems.

Manufactured using advanced PERC monocrystalline cell technology, the panel provides excellent conversion efficiency, strong low-light performance, and dependable operation under varying weather conditions. Its corrosion-resistant aluminium frame and tempered glass construction ensure durability against wind, rain, and snow loads.

Key Features

590W Maximum Power Output

High-Efficiency PERC Monocrystalline Cells

Up to 20.85% Module Efficiency

1500V DC System Voltage

Tempered Low-Iron Glass

IP68 Waterproof Junction Box

Anodized Aluminium Frame

Excellent Low-Light Performance

PID Resistance

High Mechanical Load Capacity

Suitable for On-Grid & Off-Grid Systems

Long Service Life

Technical Specifications

Brand: Seraphim

Rated Power (Pmax): 590W

Module Type: SRP-590-BMB-HV

Cell Type: Monocrystalline PERC (120 Half-Cells)

Module Efficiency: 20.85%

Open Circuit Voltage (Voc): 41.29V

Maximum Power Voltage (Vmp): 34.18V

Short Circuit Current (Isc): 18.28A

Maximum Power Current (Imp): 17.26A

Maximum System Voltage: 1500V DC

Maximum Series Fuse Rating: 30A

Operating Temperature: -40°C to +85°C

Dimensions: 2172 × 1303 × 33 mm

Weight: 29.5 kg

Frame: Anodized Aluminium Alloy

Front Glass: 3.2 mm Tempered Low-Iron Glass

Junction Box: IP68 Rated

Output Cable: 4 mm² PV Cable

Ideal Applications

Residential Solar Systems

Commercial Buildings

Industrial Facilities

Farms & Irrigation Systems

Telecom Base Stations

Schools & Hospitals

Solar Water Pumping

Off-Grid Power Systems

Hybrid Solar Installations

Package Contents

1 × Seraphim 590W Monocrystalline Solar Panel

Why Buy from HonjekExpress?

Genuine Seraphim Solar Products

Competitive Prices

Nationwide Delivery Across Nigeria

Secure Payment Options

Professional Technical Support

Trusted Renewable Energy Marketplace

Frequently Asked Questions (FAQ)

1. What is the power rating of this panel?

The panel has a rated maximum output of 590 watts under Standard Test Conditions (STC).

2. Is this a monocrystalline solar panel?

Yes. It uses high-efficiency PERC monocrystalline half-cell technology.

3. Can it be used with hybrid and off-grid inverters?

Yes. It is compatible with most hybrid, off-grid, and grid-tied solar systems when properly designed.

4. What is the maximum system voltage?

The panel supports systems up to 1500V DC.

5. Is the panel weather resistant?

Yes. It features tempered glass, an anodized aluminium frame, and an IP68-rated junction box for outdoor durability.

6. Can this panel charge a 48V battery system?

Yes. It is commonly used in 48V systems when connected through a compatible MPPT charge controller or hybrid inverter.

7. Is it suitable for residential and commercial installations?

Yes. It is ideal for homes, offices, farms, factories, schools, and commercial buildings.

8. Does it perform well on cloudy days?

Yes. The PERC cell design provides improved performance under low-light conditions compared to conventional modules.

9. What is the expected lifespan?

Seraphim panels are designed for long-term operation and typically include a 25-year or longer performance warranty, depending on the supplier and model. Confirm the warranty offered by your distributor before purchase.

10. Is installation included?

No. This listing is for the solar panel only. Installation services can be arranged separately through Honjek Technical Limited
