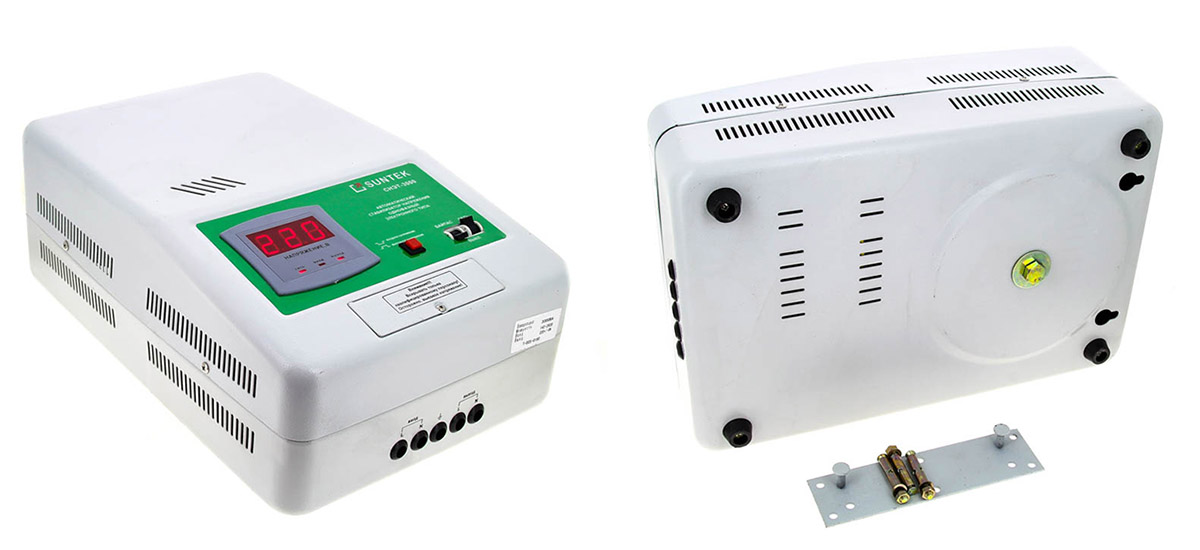

Relay Voltage Stabilizer SUNTEK 3000VA

Protect your home and office appliances from unstable electricity with the SUNTEK 3000VA Relay Voltage Stabilizer. Featuring intelligent relay-based voltage regulation, digital voltage monitoring, overload protection, and fast response technology, this stabilizer ensures reliable power delivery and extends the lifespan of your valuable equipment.

Product Description

The SUNTEK 3000VA Relay Voltage Stabilizer is engineered to provide consistent voltage output despite fluctuations in the mains supply. Utilizing advanced relay switching technology, it automatically adjusts incoming voltage levels to maintain a safe operating range for connected appliances.

With a capacity of 3000VA (3KVA), it is suitable for televisions, refrigerators, freezers, desktop computers, CCTV systems, networking equipment, sound systems, and other sensitive electronics.

The built-in digital display allows real-time monitoring of input and output voltage, while multiple protection mechanisms safeguard equipment against overvoltage, undervoltage, overload, and power surges.

Key Features

✅ 3000VA (3KVA) Capacity

✅ Automatic Voltage Regulation (AVR)

✅ Intelligent Relay Switching Technology

✅ Digital LED Voltage Display

✅ Wide Input Voltage Range

✅ Overvoltage Protection

✅ Undervoltage Protection

✅ Overload Protection

✅ Surge & Spike Protection

✅ Fast Voltage Correction

✅ Durable Metal Housing

✅ High Efficiency Performance

✅ Low Maintenance Operation

Technical Specifications

Specification Details

Brand SUNTEK

Model 3000VA Relay Stabilizer

Capacity 3000VA (3KVA)

Technology Relay-Type AVR

Display Digital LED Display

Input Voltage Wide Range Input

Output Voltage Stabilized AC Output

Protection Features Overload, High/Low Voltage, Surge Protection

Application Home, Office & Commercial Use

Cooling Method Natural Air Cooling

Suitable Applications

Home Appliances

Smart TVs

Refrigerators

Deep Freezers

Home Theaters

Office Equipment

Computers

Printers

Routers

Network Devices

Security Systems

CCTV Cameras

DVR/NVR Systems

Access Control Systems

Commercial Applications

Retail Shops

Pharmacies

Salons

Small Businesses

Benefits

Reliable Equipment Protection

Protects appliances from power fluctuations that can cause damage.

Stable Power Supply

Maintains safe and consistent voltage output.

Extended Equipment Lifespan

Reduces stress on electrical and electronic devices.

Easy Monitoring

Digital display allows users to monitor voltage conditions in real time.

Cost-Effective Solution

Prevents costly repairs and replacement of damaged equipments

Package Contents

1 × SUNTEK 3000VA Relay Voltage Stabilizer

User Manual

Warranty Card (Where Applicable)

Frequently Asked Questions (FAQ)

What is the capacity of the SUNTEK 3000VA Stabilizer?

The stabilizer has a power capacity of 3000VA (3KVA).

What does the stabilizer do?

It automatically regulates voltage and protects connected devices from voltage fluctuations, surges, and overload conditions.

Is it suitable for refrigerators and freezers?

Yes, it is suitable for refrigerators, freezers, televisions, and other appliances within its rated capacity.

Does it have a digital display?

Yes, it features a digital LED display for monitoring voltage conditions.

Can it be used in offices?

Yes, it is ideal for computers, networking devices, printers, and other office equipment.

Does it provide surge protection?

Yes, it includes protection against power surges and electrical spikes.

Is it energy efficient?

Yes, the relay-based AVR system is designed for efficient and reliable operation.

Is it suitable for Nigerian power conditions?

Yes, it is specifically useful in areas experiencing frequent voltage fluctuations and unstable power supply.

The board shows the output voltage of 220 volts . If, as a result of further voltage drop (and this is in the range of 120-140 Volts), the output voltage becomes less than the allowable  then the board shows what kind of voltage comes out of the stabilizer. When the input voltage is less than 120 volts, the letter "L" lights up on the display, but for some time there is still voltage at the output of the stabilizer.

So the stabilizer will work even from 70 volts , but we must understand that its load level should then be less than the nominal. The stabilizer begins to perform its full characteristics from 120 volts. At a voltage in the range of 270-285 Volts, the actual output voltage will also be shown on the display. But when reaching 285-288 Volt, the stabilizer will immediately turn off by turning off all devices (the letter “H” on the display). The output voltage will be high and dangerous for the equipment.

The electronic unit of the voltage stabilizer SUNTEK is a fairly powerful microcontroller, in which the input and output voltage is analyzed and signals are generated to control the stabilizer keys. When forming the control voltage, the microcontroller takes into account the response time of keys and power relays. This allows for switching without breaks. As a result, the voltage waveform at the output of the relay stabilizer repeats the shape at the input.

SUNTEK voltage regulator will be your network status indicator from 70 to 285 volts . If you are interested, follow the state of the network, if you do not have time - the stabilizer will control everything himself and give the best option for this situation.

We use different color panel for relay type voltage stabilizers. Green color for CIS countries. Gray color is universal, we use for the rest of the world. There are no fundamental technical differences.

Warranty period of work 3 years, the term of operation not less than 20 years.

With this voltage stabilizer, we recommend installing our LOSS OF NEUTRAL PROTECTION SUNTEK development. This device protects your equipment from burning out if the voltage on the neural wire is lost. Overvoltage occurs mainly due to breakage of neutral conductors, when the supply voltage is distributed unevenly between consumers or due to errors of personnel serving the electrical network. An open conductor breaks or burns out when the electrical network is overloaded (the load on the network increases every year); under adverse weather conditions, when food is produced by an air line (wind, fallen tree); during short circuits in the electrical network; with poor contact at the junction of neutral conductors; when stealing non-ferrous metal (wire); with old wiring in the home network.

We recommend installing LOSS OF NEUTRAL PROTECTION SUNTEK in front of a voltage stabilizer, for example SUNTEK. At high voltages in excess of 285 volts, the voltage regulator disconnects the entire load from the power source, but remains itself at high voltage, waiting for a lower line voltage. To protect not only your house from burning, but also a voltage stabilizer, install such protection in front of a voltage stabilizer, and you will receive complete protection against any voltage fluctuations in the network. The stabilizer and LOSS OF NEUTRAL PROTECTION SUNTEK are synchronized at the same voltage, for example, for SUNTEK voltage regulators, this is 285 Volts, in this case it does not reduce the operating range of the stabilizer, LOSS OF NEUTRAL PROTECTION SUNTEK, but serves as its additional protection and protection against burning out the neutral conductor which has often become commonplace in cities and villages.

Graph of voltage stabilizer power versus input voltage.
