Fluke 116/323 HVAC Digital Multimeter & Clamp Meter Combo Kit

Test & Measurement

Digital Multimeters

Clamp Meters

Electrical Testing Equipment

HVAC Tools

Brand

Fluke

Short Description

The Fluke 116/323 HVAC Combo Kit combines the Fluke 116 True RMS Digital Multimeter and the Fluke 323 True RMS Clamp Meter in one professional kit. Designed specifically for HVAC technicians and electricians, it provides accurate voltage, current, resistance, continuity, capacitance, temperature, and flame sensor measurements for fast and reliable troubleshooting.

Product Description

The Fluke 116/323 HVAC Combo Kit is a professional-grade electrical testing solution for installation, maintenance, and troubleshooting of HVAC and electrical systems.

The Fluke 116 Digital Multimeter features a built-in thermometer, microamp measurement for flame sensors, low-input impedance (LoZ) to eliminate ghost voltage, and True RMS measurement for accurate readings.

The Fluke 323 Clamp Meter measures AC current up to 400A without breaking the circuit and provides True RMS voltage measurements for accurate testing on variable-frequency drives and non-linear loads. Both instruments are built to Fluke's renowned safety and durability standards.

Key Features

Professional HVAC Testing Kit

Includes Fluke 116 Digital Multimeter

Includes Fluke 323 True RMS Clamp Meter

True RMS Voltage & Current Measurement

Built-in Thermometer

Microamp Measurement for Flame Sensors

LoZ (Low Input Impedance) to Prevent Ghost Voltage

400A AC Clamp Measurement

Resistance, Continuity & Capacitance Testing

Frequency Measurement

Backlit Display

Compact Ergonomic Design

CAT III 600V / CAT IV 300V Safety Rating

Technical Specifications

Fluke 116 Digital Multimeter

Display: 6,000 Counts

AC/DC Voltage: Up to 600V

True RMS Measurement

Resistance Measurement

Continuity Test

Capacitance Measurement

Frequency Measurement

Temperature Measurement

Microamp (μA) Measurement

LoZ Function

CAT III 600V Safety Rating

Fluke 323 Clamp Meter

AC Current: 400A

AC Voltage: 600V

DC Voltage: 600V

True RMS Measurement

Resistance: Up to 40kΩ

Continuity Test

Clamp Jaw Opening: 30mm

CAT IV 300V / CAT III 600V Safety Rating

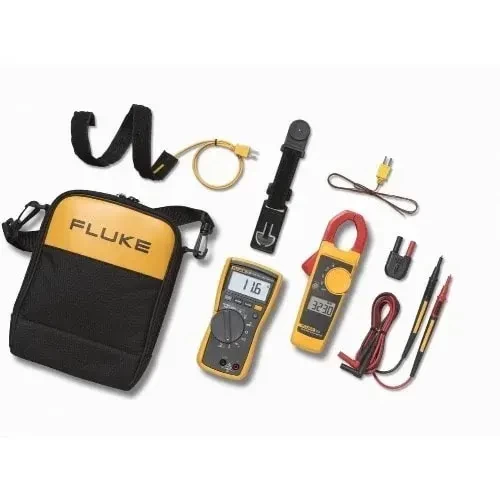

Package Contents

1 × Fluke 116 True RMS Digital Multimeter

1 × Fluke 323 True RMS Clamp Meter

Test Leads

Temperature Probe

Thermocouple Adapter

Magnetic Hanging Strap (ToolPak™)

Soft Carrying Case

User Manuals

Applications

Suitable for:

HVAC Installation & Maintenance

Electrical Troubleshooting

Commercial Buildings

Industrial Plants

Power Distribution Panels

Motor Testing

Air Conditioning Systems

Refrigeration Equipment

Facilities Maintenance

Electrical Contractors

Why Buy from HonjekExpress?

Genuine Fluke Test Instruments

Competitive Prices

Nationwide Delivery Across Nigeria

Secure Payment Options

Technical Support

Trusted Engineering & Industrial Marketplace

Frequently Asked Questions (FAQ)

1. What is included in the kit?

The kit includes the Fluke 116 HVAC Digital Multimeter and the Fluke 323 True RMS Clamp Meter, along with test leads, temperature probe, carrying case, and accessories.

2. Is this kit designed for HVAC technicians?

Yes. The Fluke 116 includes a built-in thermometer and microamp measurement for testing flame sensors, making it ideal for HVAC work.

3. What is the maximum current the clamp meter can measure?

The Fluke 323 measures up to 400A AC without disconnecting the circuit.

4. Does the multimeter measure temperature?

Yes. The Fluke 116 includes a built-in thermometer and comes with a temperature probe.

5. What is True RMS?

True RMS technology provides accurate measurements on both standard sine-wave and non-linear electrical signals commonly found in modern electrical systems.

6. Can it test flame sensors?

Yes. The Fluke 116 measures microamps (μA), allowing accurate testing of HVAC flame sensors.

7. Is it suitable for industrial electricians?

Yes. The kit is widely used by electricians, maintenance engineers, HVAC technicians, and industrial service professionals.

8. What safety ratings does it have?

The Fluke 116 is rated CAT III 600V, while the Fluke 323 is rated CAT IV 300V / CAT III 600V.

9. Does it measure DC voltage?

Yes. Both the multimeter and clamp meter measure DC voltage up to 600V.

10. Is this suitable for solar and inverter installations?

Yes. It is an excellent choice for testing solar PV systems, inverters, electrical panels, and general power distribution equipment within the instruments' voltage and current ratings.
