Three views, monitor with no blind spots |

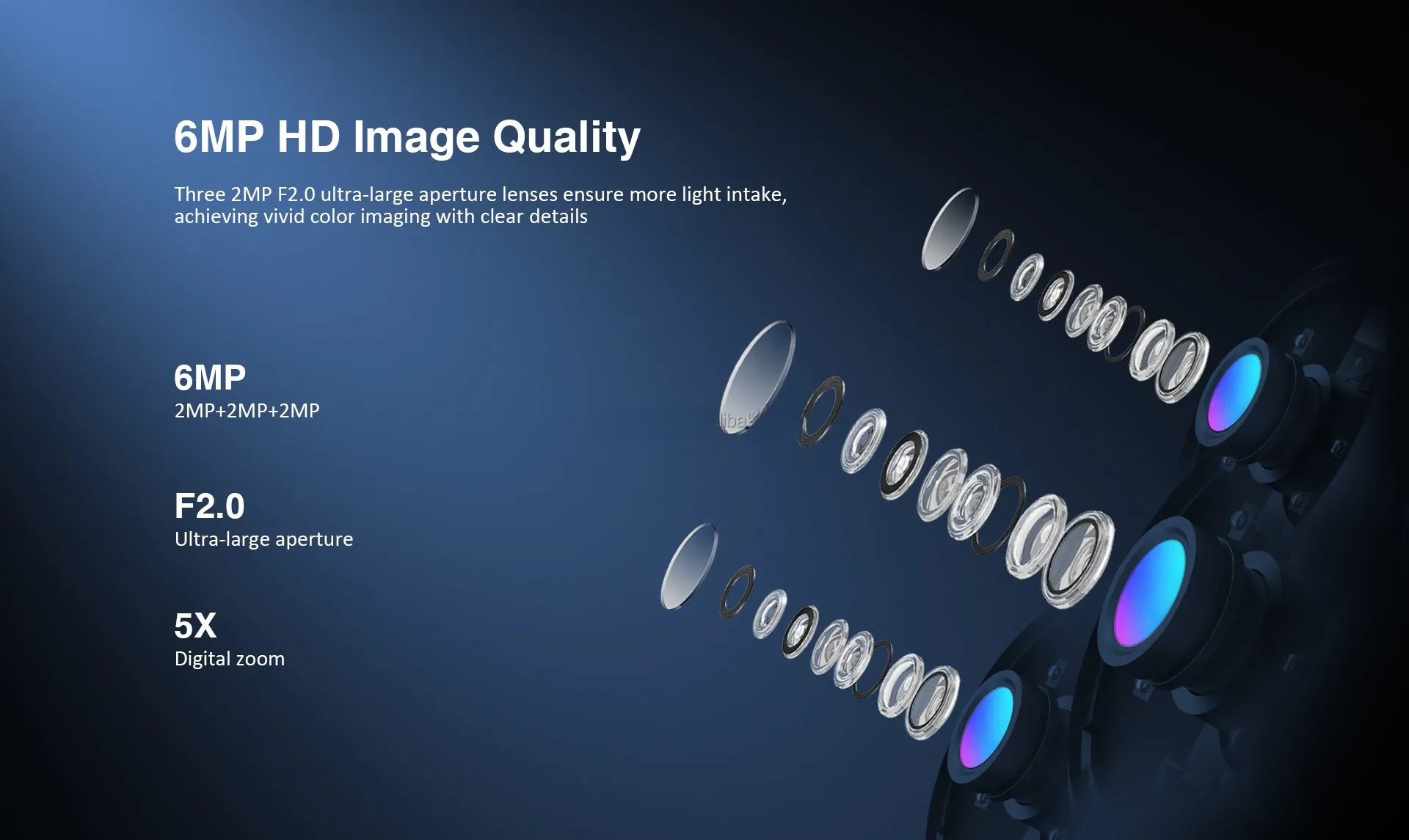

F2.0 large aperture, more light inputs, clearer night vision |
ISP image processing technology, preserving true colors |
Human detection real time alerts |
Sorts | Type | Parameters |
System | Operating system | Linux |
Online visitor | Supports 4 visitors at the same time |
APP | O-KAM Pro |
Collection | CPU | Ingenic |
Memory | 512Mb |
Lens | 4mm |
Image sensor | 1/2.7 inch 1080p progressive scan CMOS sensor |
Min. Illumination | 0.5Lux (color mode), 0.1Lux (b&w mode) |
Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation |
Night vision | Black and white night vision, full-color night vision |
Viewing angle | D 91° |
Video | Resolution | 1080P/1920x1080/15FPS |
Night vision | Black and white night vision, full-color night vision |
Compression standard | H.264 main profile/Motion-JPEG/JPEG |
IR control | IR-CUT, soft photosensitive control |
Bit rate | 128~4096kbps |
Image adjustment | Brightness, contrast, OSD display |

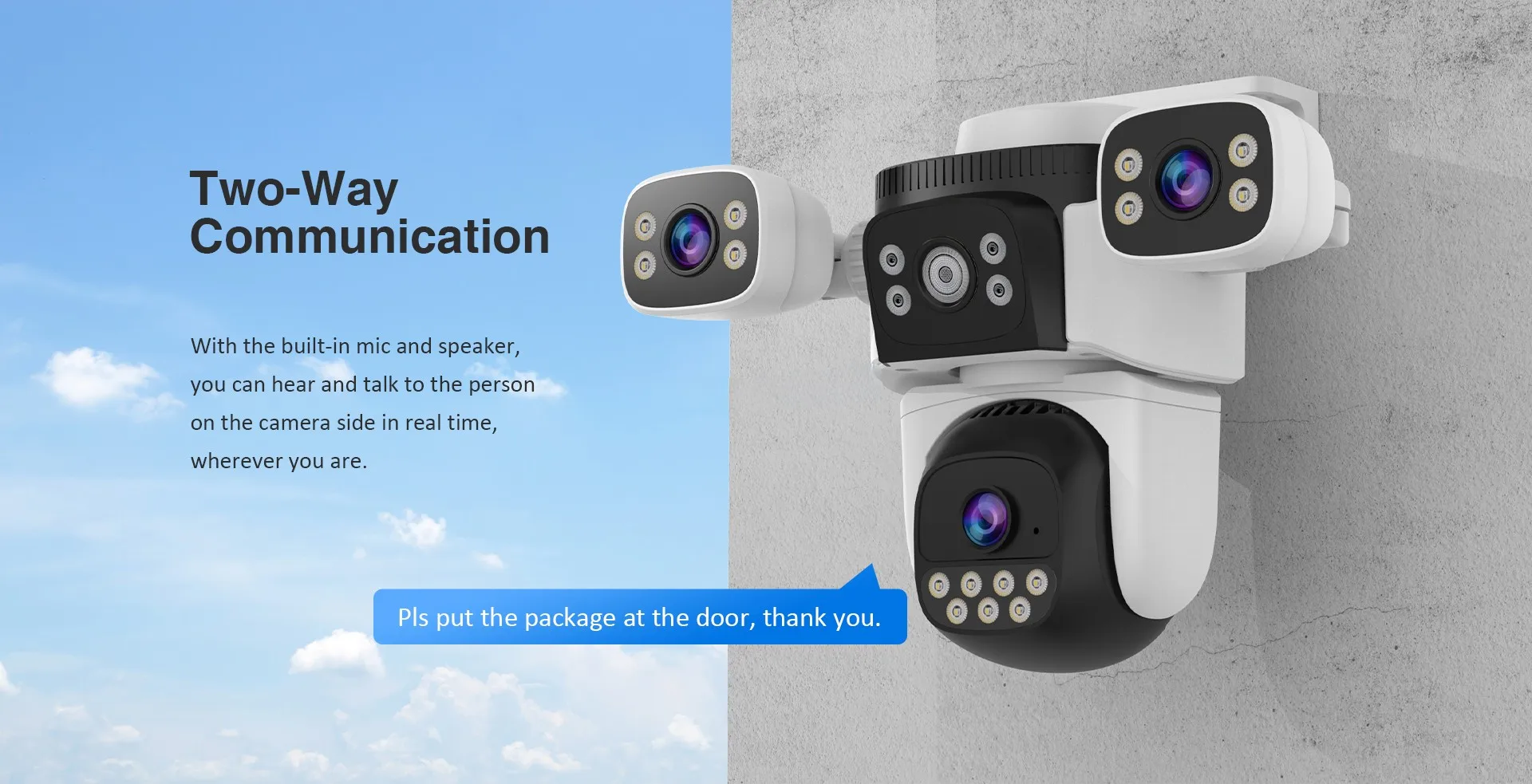

Audio | Input | Built-in -38dB microphone |
Output | Built-in 8 1W speaker |
Sampling frequency/bit width | 8KHz/16bit |
Compression standard/Bit Rate | G711A |
Pan/Tilt | Rotation angle | Pan:270° Tilt:90° |
Network | Network interface | 10Mbps/100Mbps |
Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P |

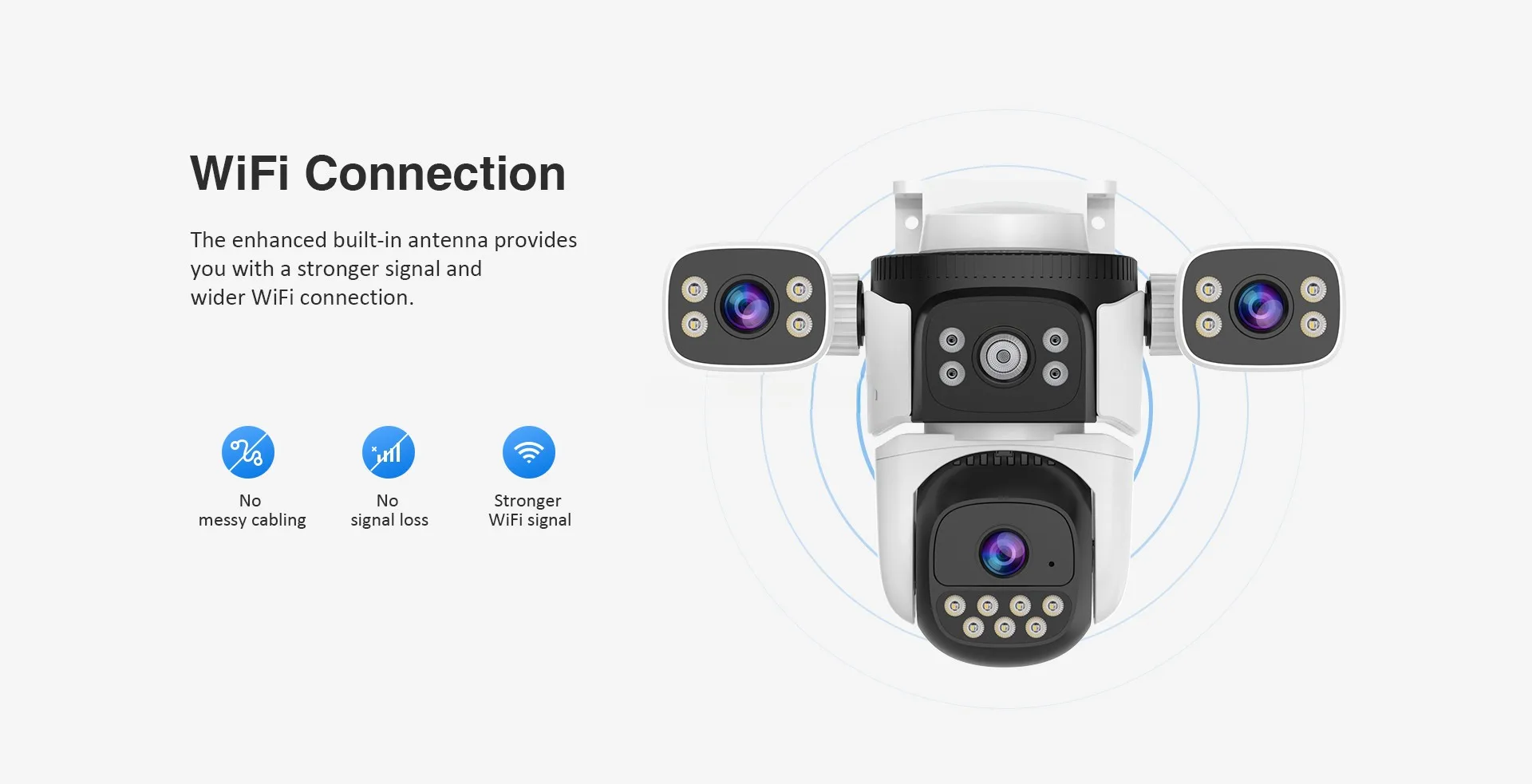

Wireless network | IEEE802.11b/g/n |
Wireless frequency | 2.4G |
Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption |
4G network(China) | 4G network(China) |

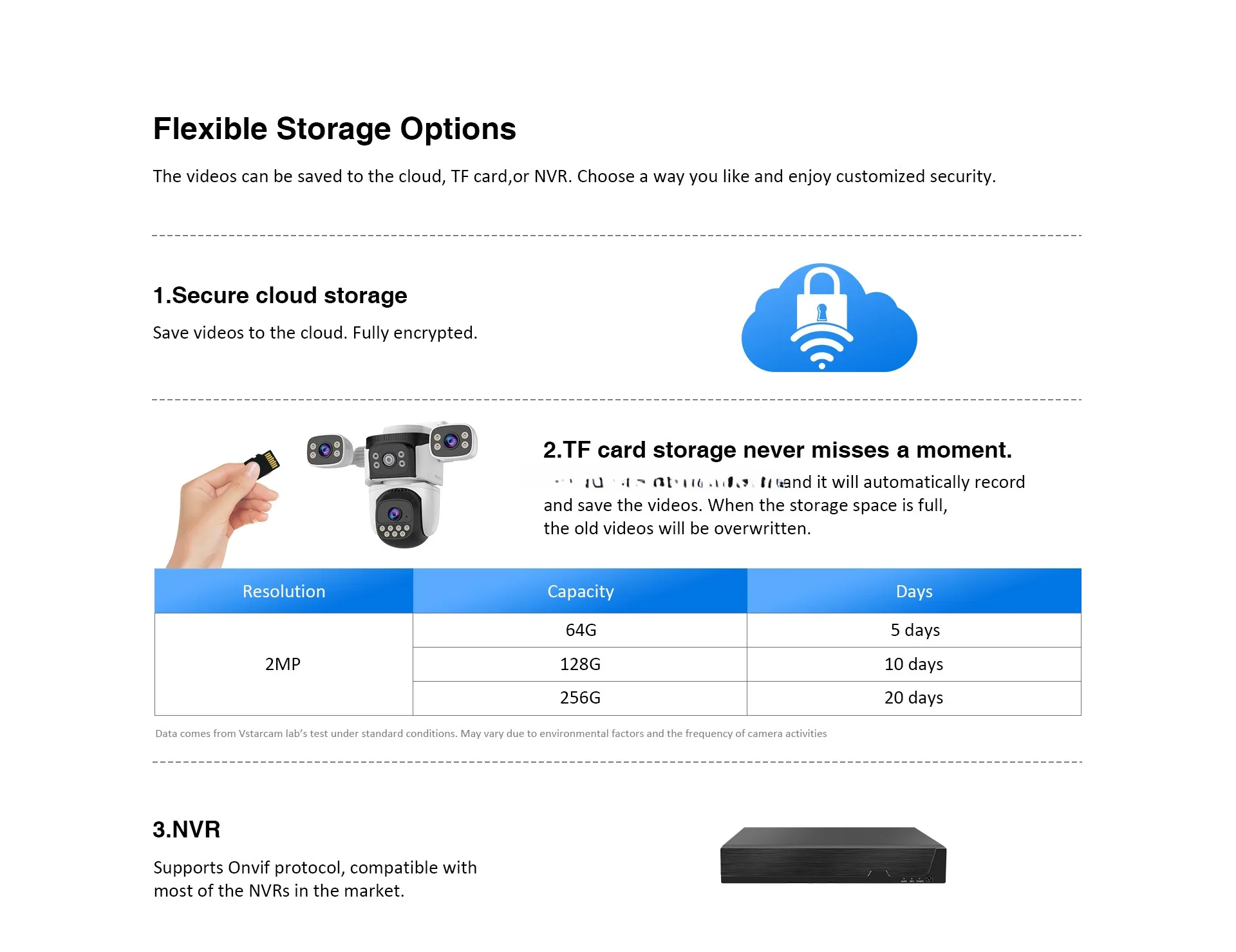

Storage | External TF card | Supports T-Flash cards (up to 256GB) |
Cloud storage | Support cloud storage, users can purchase according to their needs. |

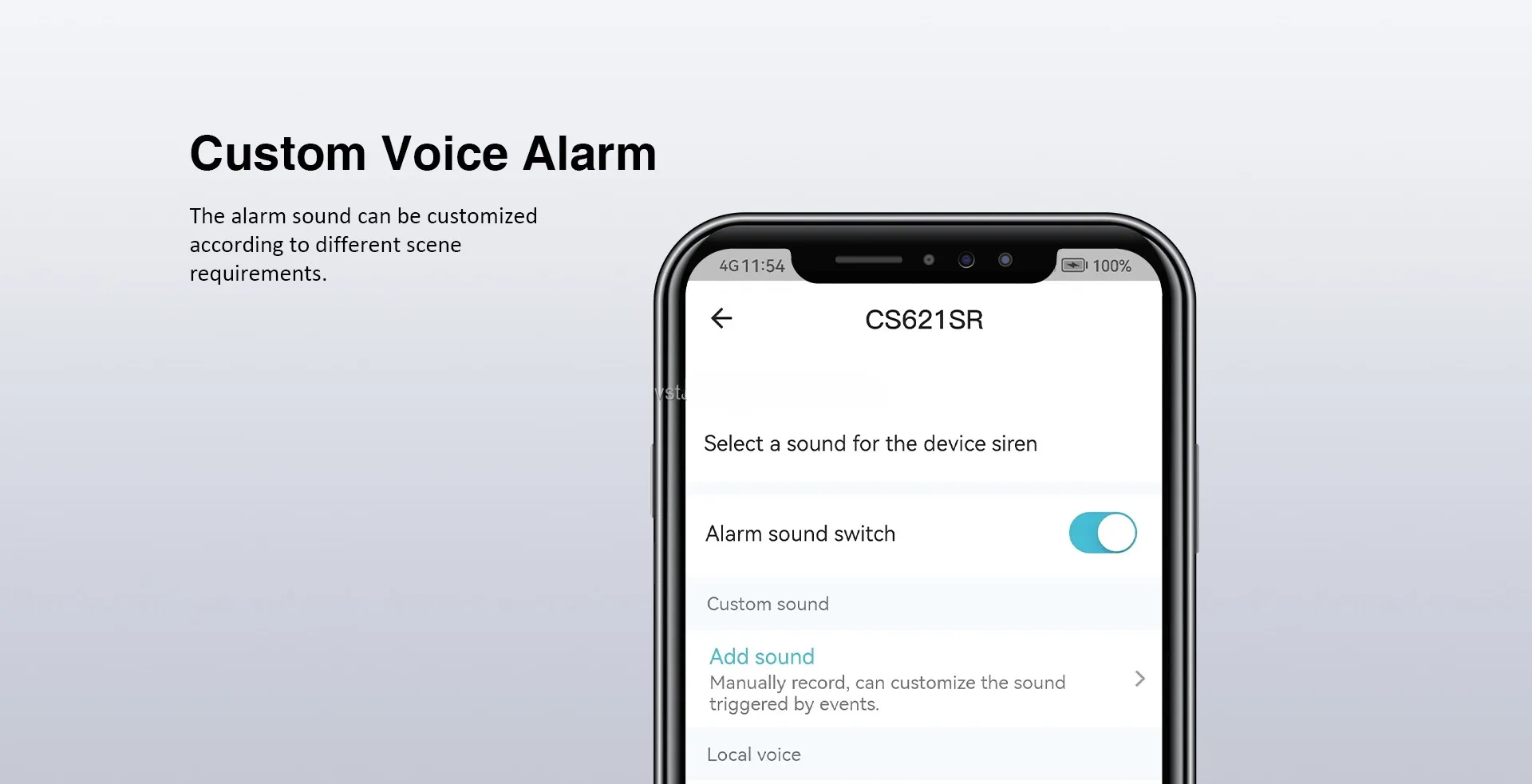

Alarm | Alarm detection | Motion detection, human detection, human framing, siren alarm, and area detection |
Physical Indicators | Rated voltage | DC12V±5% |
Power consumption | Power: 7.32W (0.61A) Maximum power: 10.2W (0.85A) |
Operating condition | Working temperature: -10~55 ℃, working humidity<90% |
Weight | N.W.:600g, G.W.:1180g |
Camera size | 154x235x185mm |
Packaging box size | 166x209x255mm |
Carton size | 525x433x525mm,12PCS/CARTON |
